The MK3 & MK4 otherwise known as the "Solid State Copicat"

The first Transistor Copicats appeared around 1965 and were produced until the mid 70's.  Though a transistor machine, they were called the "Solid State". Printed on the top right of the face plate under the W E M logo.  Produced in their hundreds of thousands many survive and are still in full use today.  A very reliable machine that went through few cosmetic and circuit changes during its production.  The most obvious being the colour of the push buttons, some black some white, Later ones were thicker buttons due to the use of different switches.  Another thing to change a few times was the tension arm from metal to a plastic moulding, later ones even had plastic wheels.  Early ones had round knobs instead of the later two pointed type.  later machines also had larger and better lid catches. The following pictures show the machine with its various knobs and buttons etc. in no particular order.

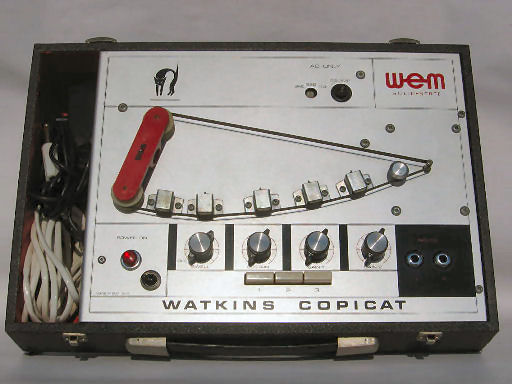

The machine above has an added socket near the power on lamp, for foot switch. Pointy knobs, white switch  buttons

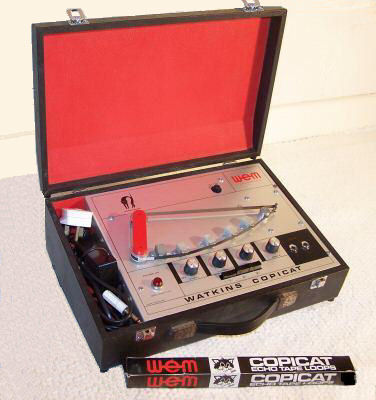

Above with pointy knobs & plastic wheels white switch buttons.

Round knobs black buttons

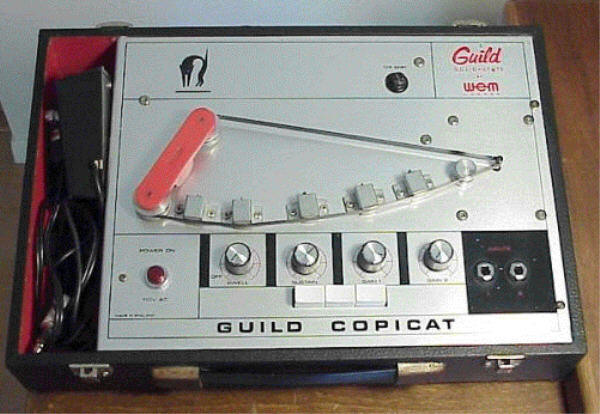

Guild USA version with fat buttons

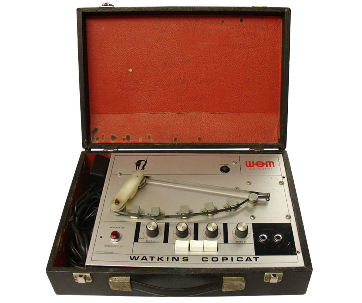

Fat buttons, incorrectly fitted tape.
Complete with mandatory fag burns on the lid which must have doubled as an ash tray!

Top view with lid closed.

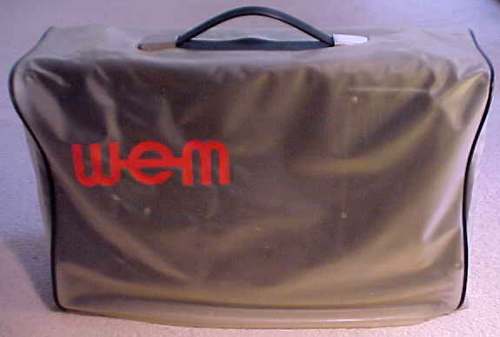

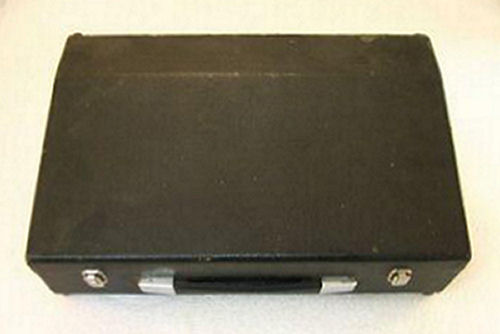

With cover



The first type solid state (transistor) Copicat for some reason called the MK111. had the bias oscillator integral with the main printed circuit board. It also had push-together connectors for the power supply and motor connections.

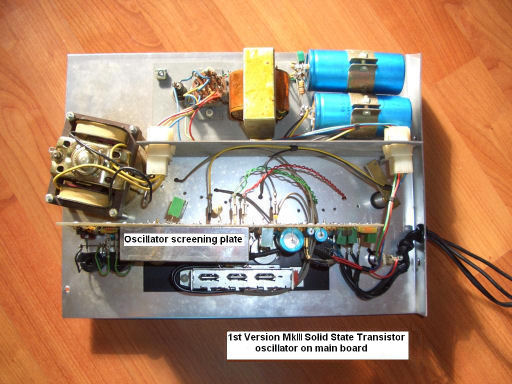

Above, a Mk111 showing the oscillator screening plate, oscillator integral with main pcb & chassis mounted connectors for motor and power supply to main pcb.

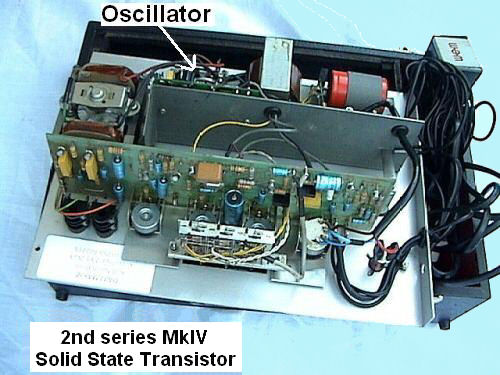

 Soon to be replaced by the MK1V with improved bias oscillator circuit, now on its own separate board mounted away from the main pcb.  The power supply and motor are now wired direct, the connectors now having been dispensed with. See following image.

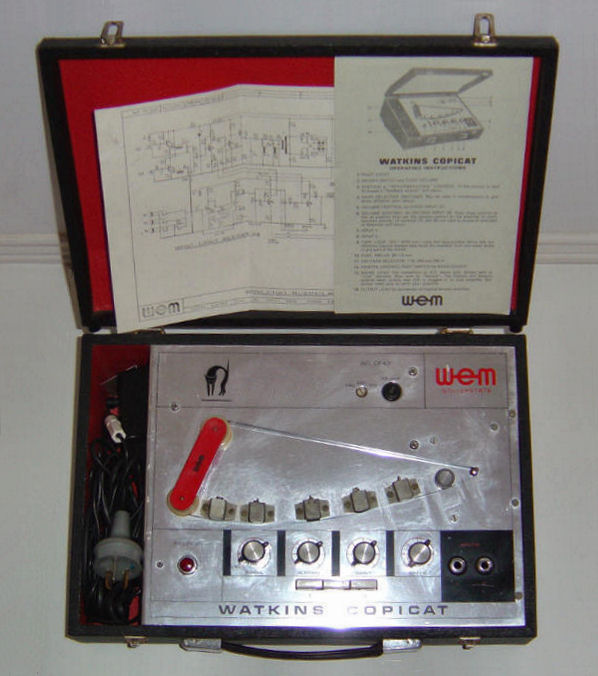

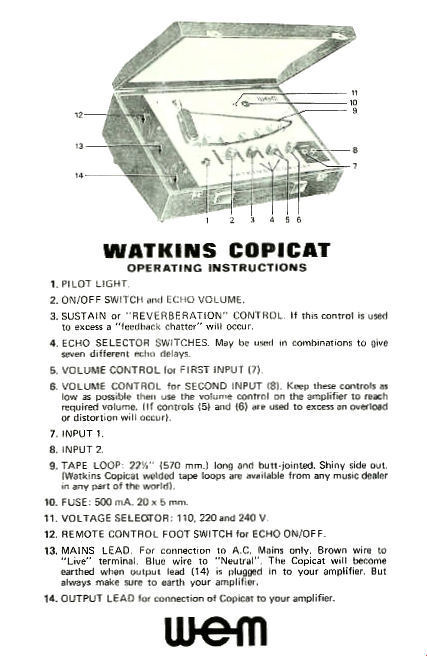

I have had several requests for an Instruction sheet the one below is the best I have at the moment, it is for the MK1V units shown on this page, but is pretty well common to the whole Copicat range.

Help yourself to a copy.

 Section 9 Tape loop Ignore the shiny side out instruction, this applies to old tape stocks.

Below is a link to a quite a good YouTube Copicat MK4 demonstration.

http://www.youtube.com/watch?v=gJCRtW3ih7Y



To be continued.
